Bossi Grit Titanium Gravel Frameset – Built for the Long Haul

Bossi Grit Titanium Gravel Frameset – Built for the Long Haul

Discover the ultimate blend of durability, versatility and performance with the Bossi Grit Gravel Frameset. Precision-engineered from premium titanium and designed for modern gravel riding, the Grit is built to handle everything from fast-paced gravel racing to multi-day bikepacking adventures.

Premium Titanium Construction

Crafted from aerospace-grade 3AL-2.5V titanium tubing, the Bossi Grit delivers the perfect balance of strength, compliance and low weight. Titanium’s natural vibration-damping properties provide exceptional ride comfort over rough terrain, while its corrosion resistance ensures your frame looks and performs like new for decades.

The frame is finished with advanced 3D printed 6AL-4V titanium dropouts, offering enhanced stiffness and precision where it matters most. This cutting-edge construction method allows for optimised strength, seamless integration, and long-term durability.

Designed for Modern Gravel Performance

The Bossi Grit is engineered around contemporary gravel standards, giving riders the flexibility to build their ideal setup.

• Massive 700 x 50mm tyre clearance for maximum grip, comfort and control

• Compatible with both integrated and non-integrated cockpits for total build customisation

• Equipped with a UDH (Universal Derailleur Hanger) for easy replacement and compatibility with the latest drivetrain systems

Whether you’re chasing podiums or exploring remote backroads, the Grit adapts to your riding style.

Versatility Without Compromise

From fast, hard-packed gravel to technical off-road routes, the Bossi Grit frameset is designed to inspire confidence. The generous tyre clearance allows for aggressive tread patterns and lower pressures, improving traction and stability across mixed terrain.

Its refined geometry balances responsive handling with all-day comfort — making it equally suited to endurance events, gravel racing, or fully loaded adventures.

Built to Last – 50 Year Warranty

Quality you can trust. The Bossi Grit is backed by a 50-year warranty, reflecting the durability of titanium construction and Bossi’s commitment to craftsmanship. This is a frameset designed not just for today’s rides, but for a lifetime of riding.

The Ultimate Titanium Gravel Frameset

If you’re searching for a high-performance titanium gravel frameset that combines cutting-edge engineering, modern standards and timeless durability, the Bossi Grit is built to exceed expectations.

Ride further. Ride smoother. Ride for life.

We are the primary retailer for Bossi Grit Gravel bikes in the UK. We sell and distribute Bossi Bicycles across the United Kingdom and have completed hundreds of custom builds.

FRAME FEATURES

- Compatible with fully integrated and semi-internal routing
- 3AL-2.5V titanium tubing

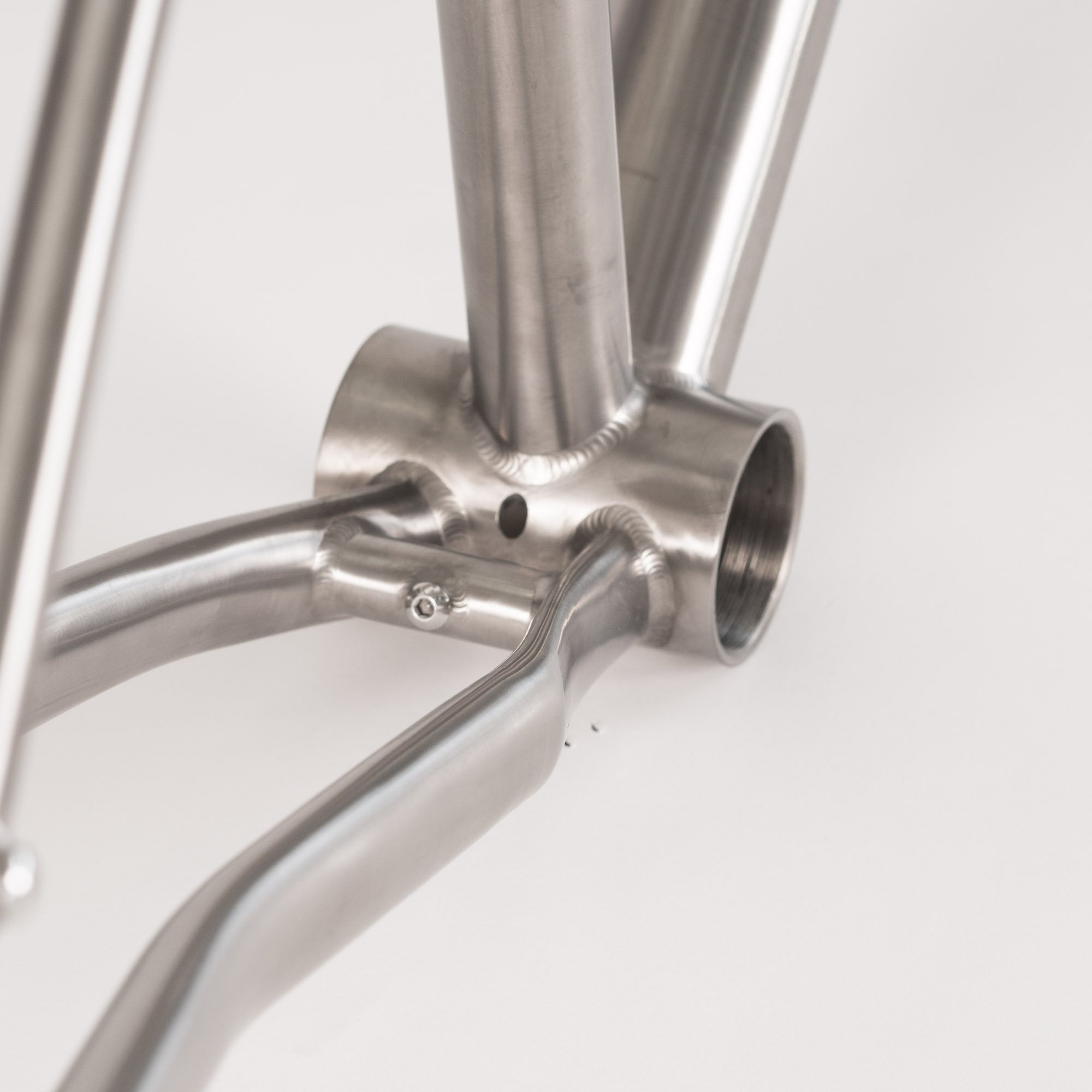

- 6AL-4V titanium bottom bracket (T47 86mm)
- 6AL-4V titanium head tube

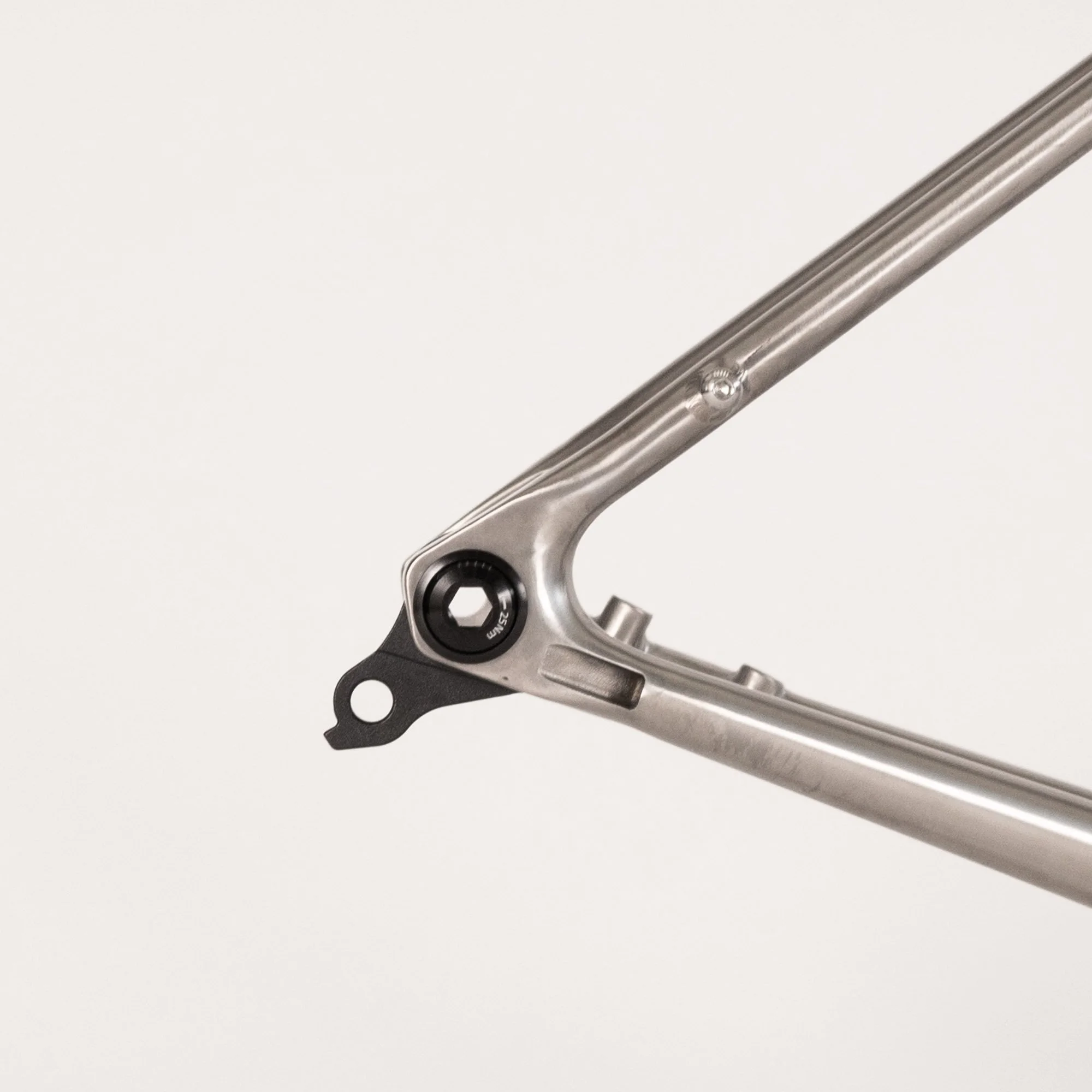

- 6AL-4V titanium 3D printed Sram UDH dropouts
- Butted seat post and down tube
- Hydroformed top tube with flattened underside
- Hydroformed double-ovalised down tube
- 3D printed chain stay yoke
- Toray T800 monocoque carbon flat-mount disc fork
- 50mm fork offset
- Double ovalised chain stays
- Tapered and lowered seat stays
- 3 x bidon mounts
- Clearance for 1L bidon

- Flat mount disc brakes
- 12 x 100mm front and 12 x 142mm rear Thru-axle
- Tapered head tube ZS 44mm upper – 1 1/2” integrated lower
- Mechanical / electronic groupset compatible
- Top tube mounts
- Internal dynamo cable routing
- Internal cable routing
- 27.2mm seatpos
- Laser engraved logos
- Pannier rack mounts on fork and seat stays
- Full fender mounts front and rear
- Clearance for 50c(700c) and 2.2"(650b) tyres
- Brush Finish
- CNC engraved headtube
- Suitable for 700c and 650b wheelsets

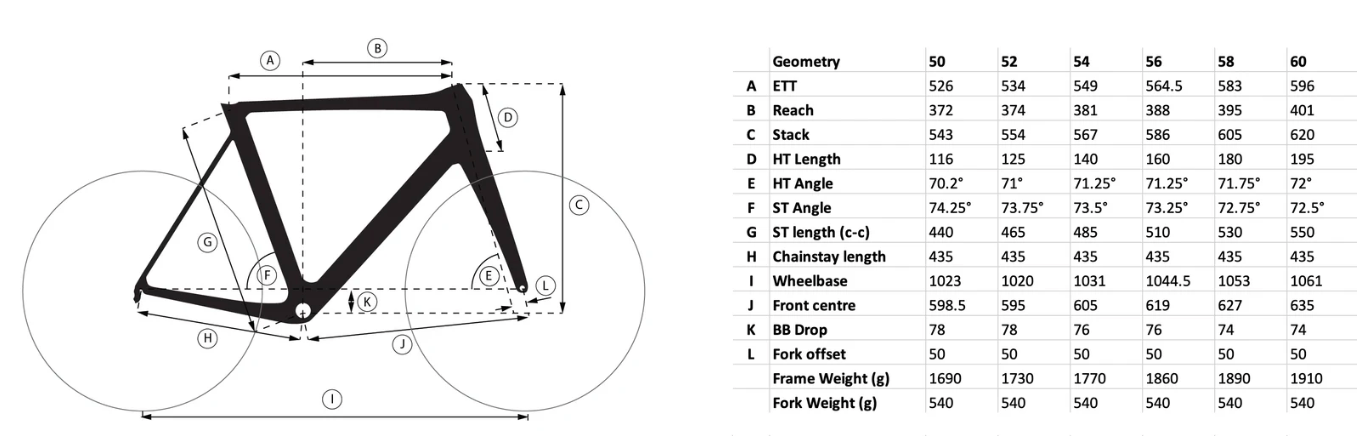

Bossi Grit Geometry Chart
